@GAUGE_THRESHOLD (Gauge Band Threshold)

This macro changes the threshold value between the color bands in a gauge chart.

SYNTAX:

@GAUGE_THRESHOLD nBand fThreshold

PARAMETERS:

nBand; 0...4 selects the color band

fThreshold; selects the threshold between color band nBand and nBand+1

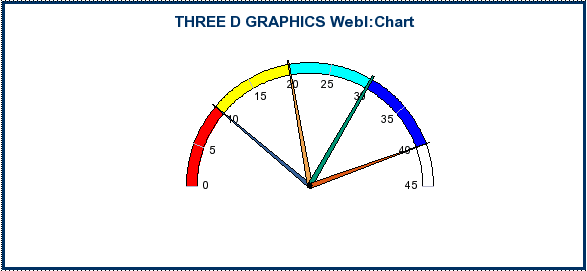

EXAMPLE: @GAUGE_THRESHOLD.WID

@GAUGE @GAUGE_THRESHOLD 0 10 @GAUGE_COLOR 0 255 0 0 @GAUGE_THRESHOLD 1 20 @GAUGE_COLOR 1 255 255 0 @GAUGE_THRESHOLD 2 30 @GAUGE_COLOR 2 0 255 255 @GAUGE_THRESHOLD 3 40 @GAUGE_COLOR 3 0 0 255

ALSO SEE:

@GAUGE_COLOR, @GAUGE_RANGE
