@SCY2 (Y2-Axis Scale)

This macro sets the minimum and maximum values that can appear on the Y2-axis in a dual-axes chart.

SYNTAX:

@SCY2 fMin fMax

PARAMETERS:

fMin; Minimum value to show on the Y2-Axis

fMax; Maximum value to show on the Y2-Axis

EXAMPLE:

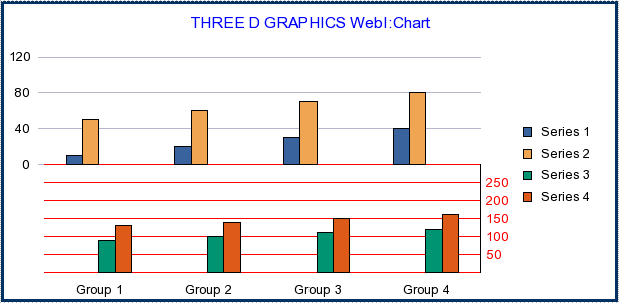

@GRAPHTYPE 18 @LEGEND_ORDER 1 @SCALE_INTERVAL 1 50 @SCY2 0 300 @AA

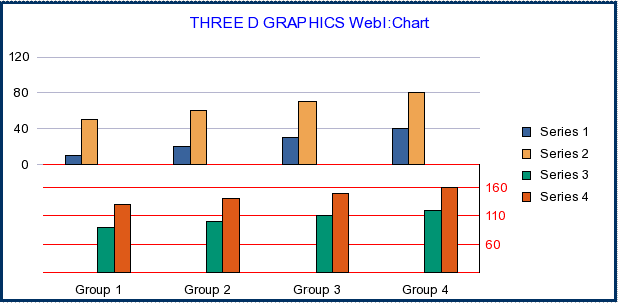

@GRAPHTYPE 18 @LEGEND_ORDER 1 @SCALE_INTERVAL 1 50 @SCY2 10 200 @AA

NOTES:

• If fMin and fMax parameters are BOTH set to 0.0, the Y2-Axis scale mode is reset to automatic (i.e., the charting library automatically calculates the Y2-Axis scale based on the values in the data set).

• Dual-Axes and Bi-Polar charts can be created with the @GRAPHTYPE macro

ALSO SEE::

• @SC (Y-Axis Scale)

• @SCX (X-Axis Scale)
