@USER_FILL_CIRCLE (User-Defined Color-Filled Circle)

In 2D charts, this macro fills a portion of the chart frame with a color-filled circle and optional phrase. Set fStartX and fStopX to zero to select the lower left corner of the chart frame.

SYNTAX:

@USER_FILL_CIRCLE fStartX fStopX fStartY fStopY nRed nGreen nBlue szPhrase

PARAMETERS:

fStartX; 0.0...1.1 X-Axis start location

fStopX; 0.0...1.1 X-Axis stop location

fStartY; 0.0...1.1 Y-Axis start location

fStopY; 0.0...1.1 Y-Axis stop location

nRed; 0...255 defines the RED portion of the RGB color

nGreen; 0...255 defines the GREEN portion of the RGB color

nBlue; 0...255 defines the BLUE portion of the RGB color

szPhrase; Optional phrase. Add a tilde character (~) to this string if you intend to define another macro in the same title field.

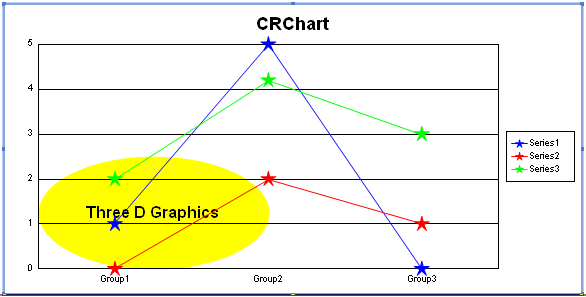

EXAMPLE: @USER_FILL_CIRCLE.RPT

@USER_FILL_CIRCLE 0.0 0.5 0.0 0.5 255 255 0 Three D Graphics

PERSISTENT:

NO

REQUIREMENTS:

Crystal Reports 9 or Higher

NOTES:
