@ABS_BAR (Absolute Bars for Negative Values)

In side-by-side bar charts, this macro can be used to force negative values to draw as positive risers on the Y-Axis with negative color and data text.

SYNTAX:

@ABS_BAR bAbsBar

PARAMETERS:

bAbsBar ; 0/1
0 = Draw negative value risers normally
1 = Draw negative value risers on the positive Y-Axis

EXAMPLE: @ABS_BAR.WID

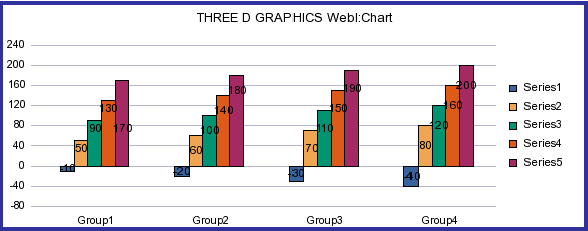

@ABS_BAR 0

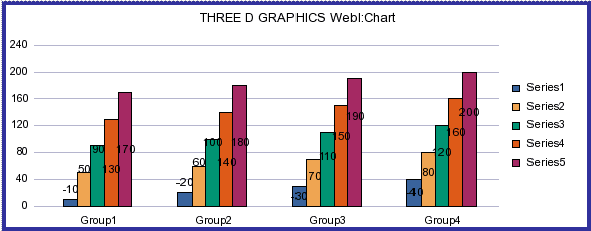

@ABS_BAR 1
