@ASL_DP (Alias Series Label/Data Point)

If the first group label contains a tilde (~), this macro maps the sub-string to the left of the first tilde to the series (legend) label specified by nSeries. When group labels are drawn, the sub-string and tilde are stripped out so that neither appear on the group axis.

SYNTAX:

@ASL_DP nSeries

PARAMETERS:

nSeries; 0...number of series in chart (0=Series 1).

EXAMPLE:

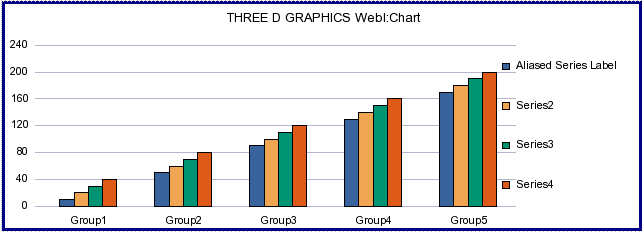

In this example report, the first column/group label in the data set contains the string: "Aliased Series Label~Group1".

@SWAP 0 @ASL_DP 0

ALSO SEE:

@ASL
