@AXIS (Assign Series to Axis)

In dual-Y and bi-polar axis charts, this macro assigns a series to the Y1 or Y2 axis.

SYNTAX:

@AXIS nSeries bAxis

PARAMETERS:

nSeries; -1...n (where: n = the total number of series in the chart). -1 = apply to all series, 0 = Series 1, 1 = Series 2, etc.

bAxis; 0/1
0=assign nSeries to Y1-Axis
1=assign nSeries to Y2-Axis

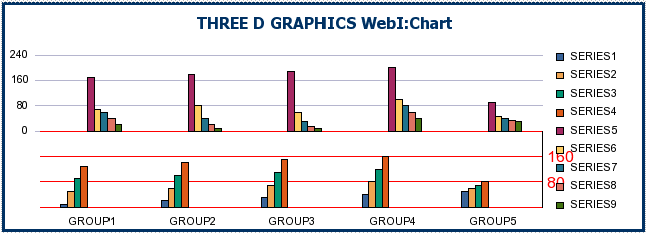

EXAMPLE: @AXIS.WID

@GRAPHTYPE 18 @AXIS 0 1 @AXIS 1 1 @AXIS 2 1 @AXIS 3 1 @AXIS 4 0 @AXIS 5 0 @AXIS 6 0 @AXIS 7 0 @AXIS 8 0

NOTES:

Dual-Axes and Bi-Polar charts can be created with the @GRAPHTYPE macro
