@CONNECT2 (Special draw mode for bubble/scatter charts)

This macro enables/disables a special draw mode for scatter/bubble charts with exactly 2 groups per series. Marker shapes are set to filled circles and the data line type is set to markers and lines.

SYNTAX:

@CONNECT2 bConnect2

PARAMETERS:

bConnect2; 0/1
1 = Enable Special Draw Mode
0 = Disable Special Draw Mode

EXAMPLE:

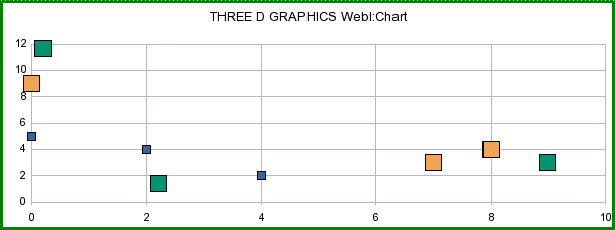

@GRAPHTYPE 50 @SZ 35 @CONNECT2 0

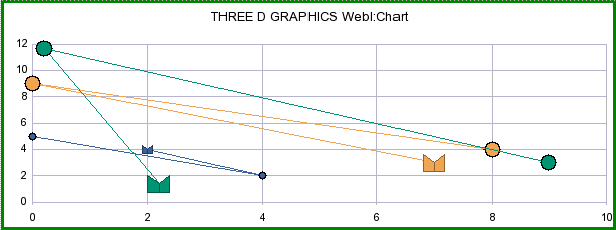

@GRAPHTYPE 50 @SZ 35 @CONNECT2 1
