@EXTEND_LOGAXIS (Extend Log Axis)

This macro can be used to extend a log axis scale beyond the auto-chosen scale.

SYNTAX:

@EXTEND_LOGAXIS nAxis nNeg nPos

PARAMETERS:

nAxis; 0 = Y1-Axis, 1 = Y2-Axis, 2 = X-Axis

nNeg; -5...0 Lowest negative value on the axis

nPos; 0...5 Highest positive value on axis

EXAMPLE:

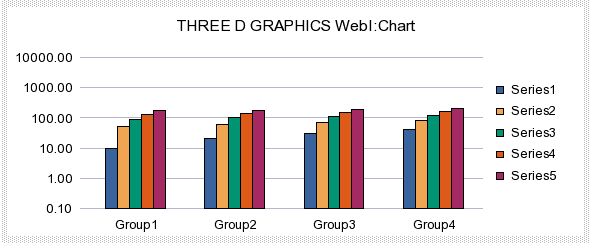

@EXTEND_LOGAXIS 0 -1 1

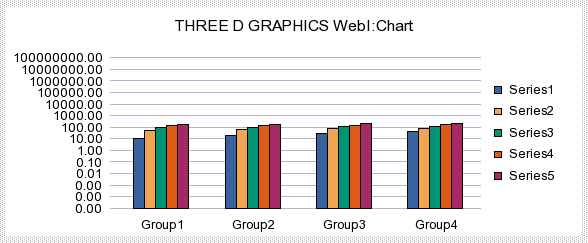

@EXTEND_LOGAXIS 0 -5 5
