@GAUGE_RANGE (Gauge Range Color)

The macro defines and colors up to six segments in the gauge range.

SYNTAX:

@GAUGE_RANGE number fromValue toValue fill

PARAMETERS:

number; 0...5 Gauge Range Segment Number

fromValue; Starting Value

toValue; Ending Value

fill; Color, Gradient, or Image defined in any of the following formats:



Data Type

Range

Example

Color

Hex

0x000000...0xFFFFFF

0xFF0000 (Red)


HTML

#000000...#FFFFFF

#FF0000 = Red


Integer

three integers 0...255 specifying the red, green, & blue components of the color

255 0 0 = Red


String

a color name string from http://www.w3schools.com/CSS/css_colornames.asp

Red

Color + Transparency

String:
Integer

a color name string from http://www.w3schools.com/CSS/css_colornames.asp:0...255

Red:224 (almost opaque)


HTML

#00000000...#FFFFFFE0 where: last two characters specify transparency level

#ff0000e0
#ff0000=Red
e0=Transparency

Gradient

String

a gradient name defined by the @GRAD or @GRAD_ABA macro

@GAUGE_RANGE 0 0 10 MyGradientDef


String

a gradient name defined by the @PICT or @PICTF macro

@GAUGE_RANGE 0 0 10
MyPictureDef

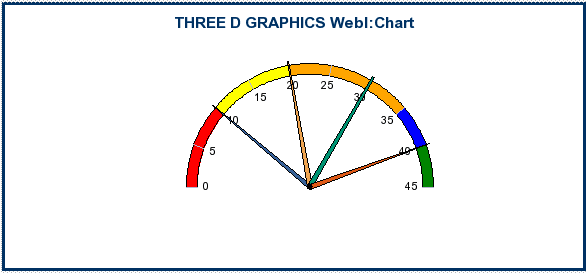

EXAMPLE: @GAUGE_RANGE.WID

@GAUGE
@GAUGE_RANGE 0 0 10 Red
@GAUGE_RANGE 1 10 20 Yellow
@GAUGE_RANGE 2 20 35 Orange
@GAUGE_RANGE 3 35 40 Blue
@GAUGE_RANGE 4 40 45 Green
