@LEGEND (Legend Size/Location)

This macro can be used to specify a fixed size/location for the chart legend. If you want the chart legend to be the exact same size and in the same location on each page of a report, this macro will position the chart frame at the specified X/Y coordinates.

SYNTAX:

@LEGEND nUpperLeftX nUpperLeftY nLowerRightX nLowerRightY

PARAMETERS:

nUpperLeftX, nUpperLeftY; -16382...+16382 specifies the X/Y position of the upper left corner of the chart legend in virtual coordinates

nLowerRightX, nLowerRightY; -16382...+16382 specifies the X/Y position of the lower right corner of the chart legend in virtual coordinates

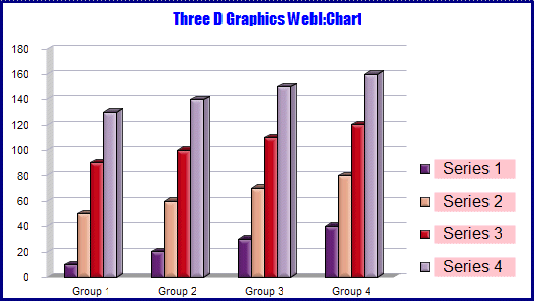

EXAMPLE: @LEGEND.WID

@LEGEND 16000 16000 16300 16300 @GCOLOR 11 Pink

@LEGEND 16000 500 16300 16300 @GCOLOR 11 Pink

ALSO SEE:

@LEGEND_ORDER, @LEGEND_WRAP_WIDTH
