@PAT (Patterns on Risers)

This macro can be used to apply a pattern to risers.

SYNTAX:

@PAT nSeries nPattern

PARAMETERS:

nSeries; -1...n (where: n = the total number of series in the chart). -1 = apply to all series, 0 = Series 1, 1 = Series 2, etc.

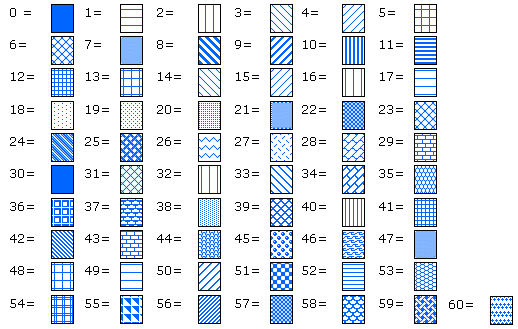

nPattern; 0...60 selects one of the following patterns with a white background. You can use -1 to -60 to select one of these patterns with a transparent background.

EXAMPLE:

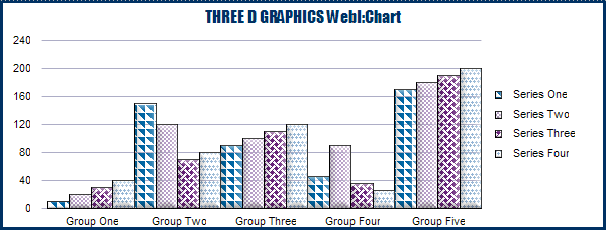

@COLOR_SCHEME 4 @RISER_WIDTH 100 @PAT 0 -55 @PAT 1 -57 @PAT 2 -59 @PAT 3 -60

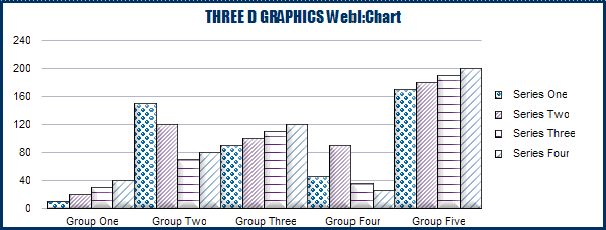

@COLOR_SCHEME 4 @RISER_WIDTH 100 @PAT 0 45 @PAT 1 47 @PAT 2 49 @PAT 3 50
