@SCX (X-Axis Scale)

This macro sets the minimum and maximum values that can appear on the X-Axis. It can only be used in a chart with a true X-Axis (e.g., Scatter, Bubble, Polar, etc).

SYNTAX:

@SCX fMin fMax

PARAMETERS:

fMin; Minimum value to show on the X-Axis

fMax; Maximum value to show on the X-Axis

EXAMPLE: @SCX.WID

@SZ 50 @GCOLOR 14 255 0 0 @SCX 1 5

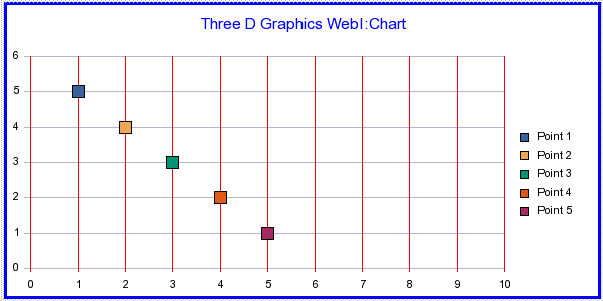

@SCX 0 10

NOTES:

If fMin and fMax parameters are BOTH set to 0.0, the X-Axis scale mode is reset to automatic (i.e., the charting library automatically calculates the X-Axis scale based on the values in the data set).

ALSO SEE::

• @SC (Y-Axis Scale)

• @SCY2 (Y2-Axis Scale)
