@WATERFALL4 (Waterfall Chart with Color Parameters)

This macro creates a waterfall chart with color parameters for positive, negative, current, and total risers. The string parameters (pSz) identify the risers to be colored with rgbCurr and rgbTotal.

SYNTAX:

@WATERFALL4 rgbPositive rgbNegative rgbCurr rgbTotal pSzCurr~ pSzTotal

PARAMETERS:

rgbPositive; Color to draw riser(s) with positive values

rgbNegative; Color to draw riser(s) with negative values

rgbCurr; Color to draw riser(s) with the group label string identified by pSzCurr

rgbTotal; Color to draw riser(s) with the group label string identified by pSzTotal

Each color can be specified in Hex, HTML, Integer, or String format

Data Type	Range	Example
Hex	0x000000...0xFFFFFF	0xFF0000 (Red)
HTML	#000000...#FFFFFF	#FF0000 = Red
Integer	three integers 0...255 specifying the Red-Green-Blue components of the color	255 0 0 = Red
String	a color name string from http://www.w3schools.com/CSS/css_colornames.asp	Red

pSzCurr/pSzTotal; Group label strings identifying rgbCurr and rgbTotal risers. The two strings must be separated with a tilde and space and shown in the example.

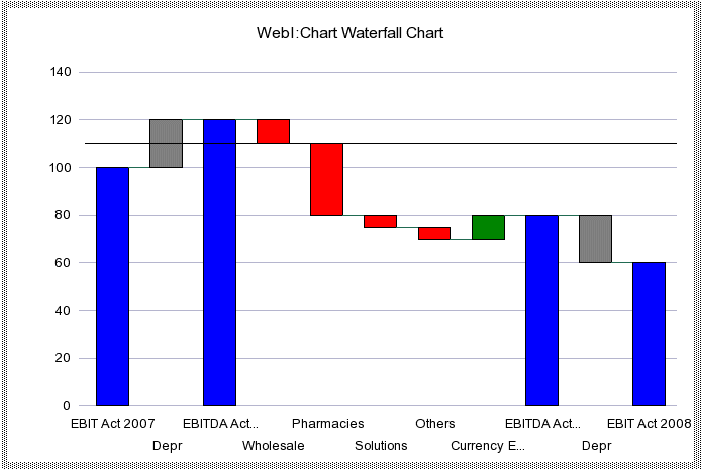

EXAMPLE:

@AGL 9 Depr~ @AA @SWAP 0 @WATERFALL4 green red gray 0x0000FF Depr~EBITDA~

ALSO SEE::

@WATERFALL
