@Y2BASE (Y2-Axis Base Line)

For dual-Y and bi-polar charts, this macro specifies a baseline position for the Y2-axis. The default value is 0.0. Values greater than fBase draw "Up" from the baseline. Values less than fBase draw "Down" from the baseline.

SYNTAX:

@Y2BASE fBase

PARAMETERS:

fBase; Base line value

EXAMPLE:

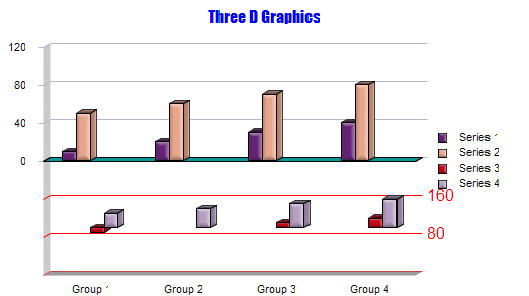

@GRAPHTYPE 18 @Y2BASE 80

@Y2BASE 100

NOTES:

Dual-Axes and Bi-Polar charts can be created with the @GRAPHTYPE macro
