This macro automatically arranges elements in a chart. It is the same as the @AA macro with the following exceptions:
1) It does not autosize font labels. Each label keeps its current font size.
2) The nFixup parameter can be used to move the bottom of the chart frame up or down to provide more or less space for the X-axis labels
3) The nLegendMode parameter can be used to force the legend to a specific location.
@AA3 nFixup nLegendMode
nFixup; -16000...16000 specifies how much to move the bottom of the chart frame up (negative values) or down (positive values).
nLegendMode; 0...2 specifies the position to force the legend (0=right, 1=left, 2=bottom)
@AA3 500 1

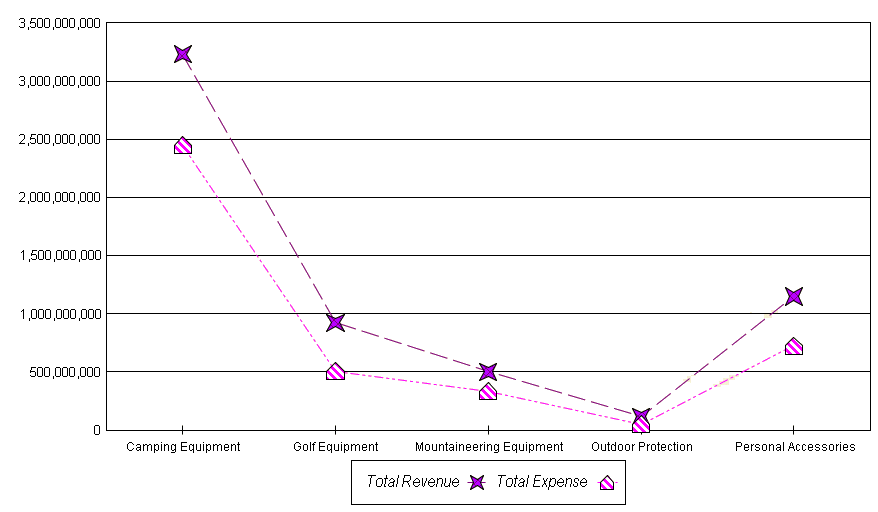

@AA3 -500 2
