@ALPHA (Alpha Channel Transparency)

This macro sets the Alpha Channel Transparency of markers and risers. nValue selects the amount of opaqueness/transparency.

SYNTAX:

@ALPHA nSeries nValue

PARAMETERS:

nSeries; -1...n (where: n = the total number of series in the chart). -1 = apply to all series, 0 = Series 1, 1 = Series 2, etc.

nValue; 0...255 selects the transparency level. 255 (the default) = no transparency. 0 = completely transparent.

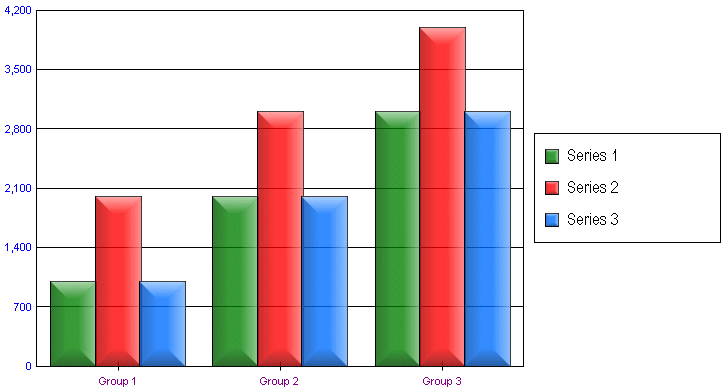

EXAMPLE:

@ALPHA -1 200

@ALPHA -1 100

@ALPHA -1 10

PERSISTENT:

YES
