@BEVEL (Bevel Chart Object)

This macro can be used to apply a bevel effect to a chart object.

SYNTAX:

@BEVEL nObject nBevelType

PARAMETERS:

nObject; 1...3. 1=Chart Background, 2=Chart Frame. 3=Risers

nBevelType; 0...3
0=None
1=Smooth Edge
2=Chisel Edge
3=Donut
4=Circular
Bevel types 1 and 2 can only be applied to rectangle and polygon objects
Bevel type 3 can only be applied to ellipses and slices
Bevel type 4 can only be applied to circular markers.

EXAMPLE:

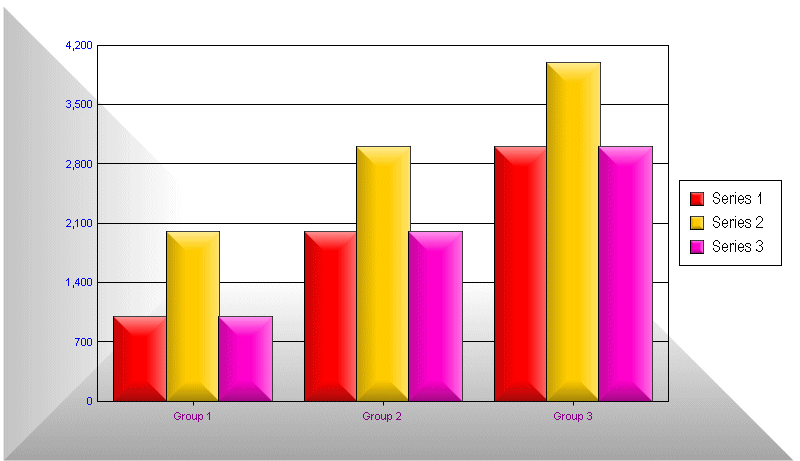

@BEVEL 1 1

@BEVEL 2 1

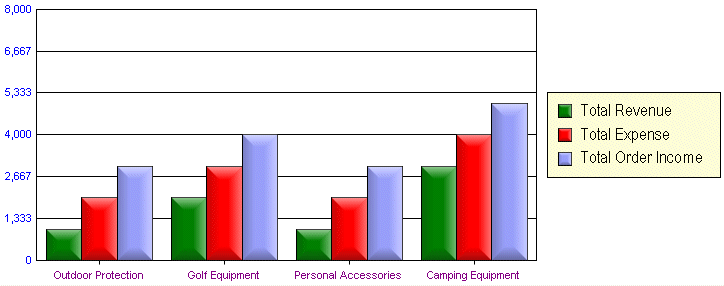

@BEVEL 3 1

@BEVEL 3 2

@BEVEL 3 3

PERSISTENT:

YES (Use nBevelType zero (0) to remove the bevel)
