@COND_GROUP_LABEL (Conditional Group Label)

This macro will apply a color to the riser(s) at nSeries if the series' group label is szGroupLabel.

SYNTAX:

@COND_GROUP_LABEL nSeries nRed nGreen nBlue szGroupLabel

PARAMETERS:

nSeries; -1...n (where: n = the total number of series in the chart). -1 = apply to all series, 0 = Series 1, 1 = Series 2, etc.

nRed, nGreen, nBlue; 0...255 color to apply to series riser.

szGroupLabel; Group label string

EXAMPLE:

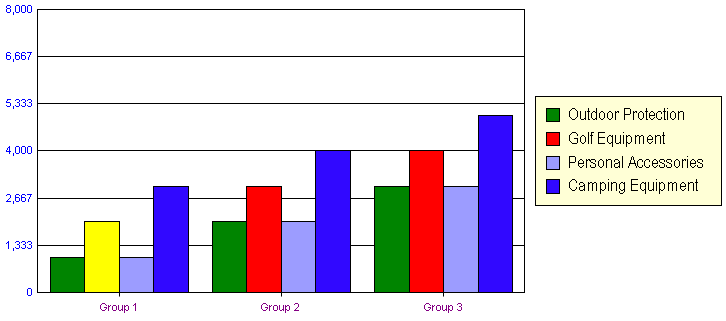

@COND_GROUP_LABEL 1 255 255 0 Group 1

PERSISTENT:

NO

NOTES:

• The color will only be applied to the first instance of szGroupLabel in the group labels. If two groups have the same label, the color is only applied to the first instance. The szGroupLabel cannot be specified as a runtime parameter (i.e., P3). It must be a literal string.

• The group label (szGroupLabel) is case sensitive (GROUP 1 will not match Group 1).
