This macro can be used to specify a fixed size/location for the chart frame. If you want the chart frame to be the exact same size and in the same location on each page of a report, this macro will position the chart frame at the specified X/Y coordinates.
SYNTAX:
@FRAME nUpperLeftX nUpperLeftY nLowerRightX nLowerRightY
PARAMETERS:
nUpperLeftX, nUpperLeftY; -16383...+16383 specifies the X/Y position of the upper left corner of the chart frame in virtual coordinates
nLowerRightX, nLowerRightY; -16383...+16383 specifies the X/Y position of the lower right corner of the chart frame in virtual coordinatesEXAMPLE:

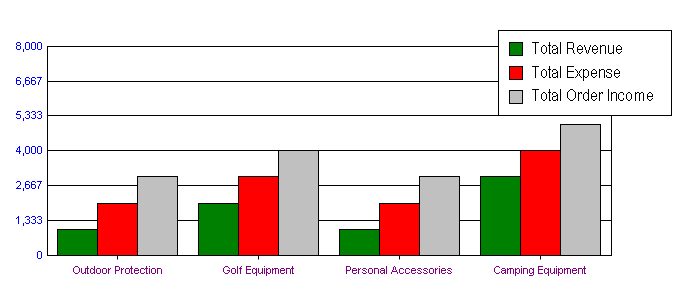

@FRAME -10000 1110 13383 -14000

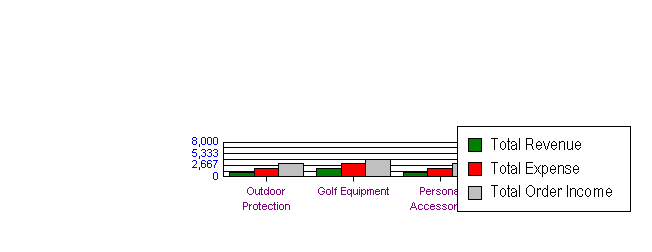

@FRAME -1000 1110 13383 -1400
PERSISTENT:
YES
