@GAUGE_BORDER_STYLE (Gauge Border Style)

This macro assigns a style to the gauge border.

SYNTAX:

@GAUGE_BORDER_STYLE nStyle

PARAMETERS:

nStyle; 0...6 selects a gauge border style.
0=None

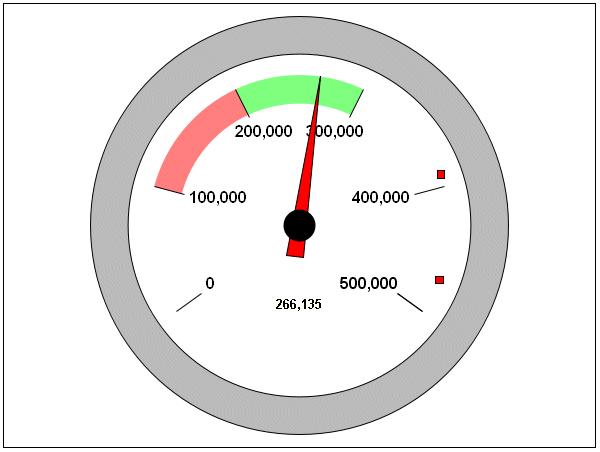

1=Simple Round

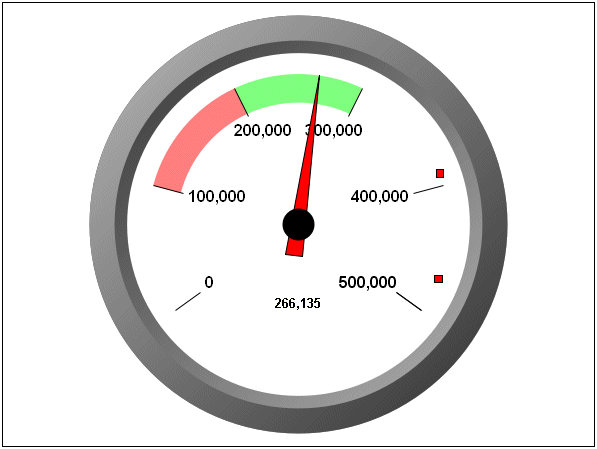

2=3D

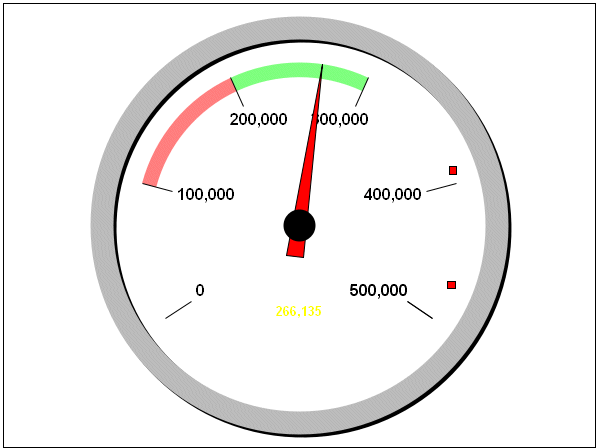

3=Embossed
4=Donut
5=Metallic

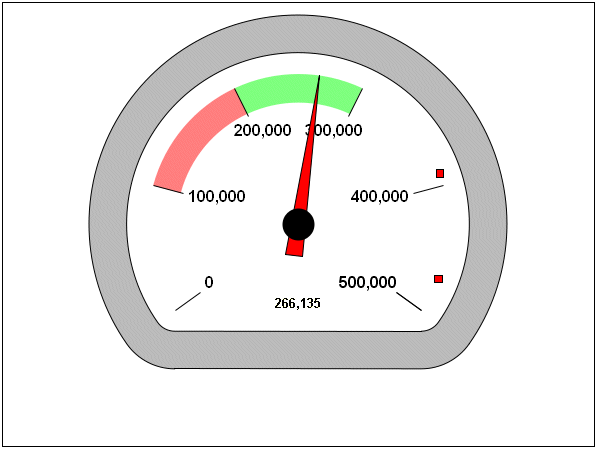

6=Clipped

EXAMPLE:

@GAUGE_BORDER_STYLE 0

@GAUGE_BORDER_STYLE 1

@GAUGE_BORDER_STYLE 2

@GAUGE_BORDER_STYLE 3

@GAUGE_BORDER_STYLE 4

@GAUGE_BORDER_STYLE 5

@GAUGE_BORDER_STYLE 6

PERSISTENT:

NO
