@GAUGE_MULTIPLE_NEEDLES (Multiple Gauge Needles)

When a gauge chart includes more than one series, this macro controls the number of needles to draw.

SYNTAX:

@GAUGE_MULTIPLE_NEEDLES bEnable

PARAMETERS:

bEnable; 0=Draw first series as a needle, draw all other series as markers. 1=Draw all series as needles.

EXAMPLE:

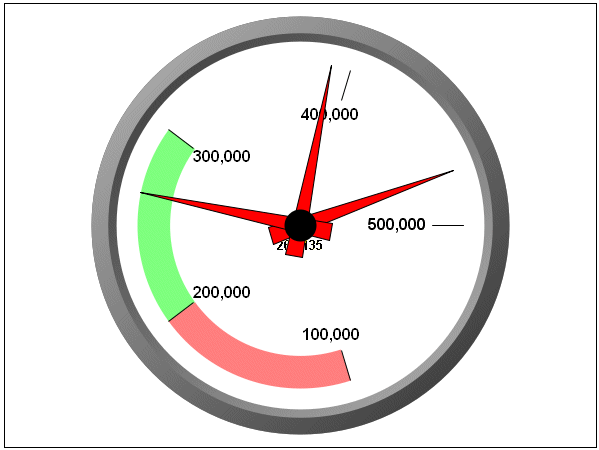

@GAUGE_MULTIPLE_NEEDLES 1

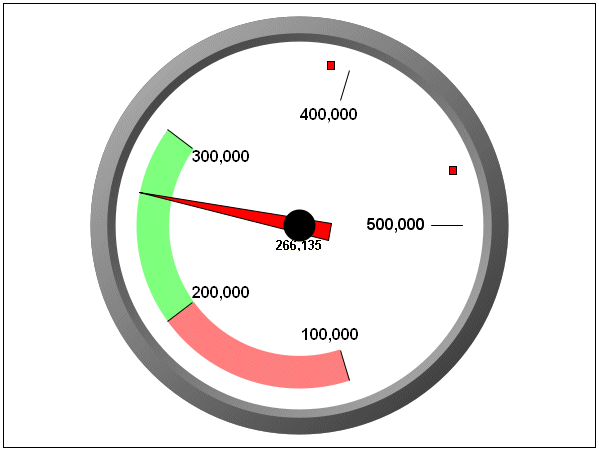

@GAUGE_MULTIPLE_NEEDLES 0

PERSISTENT:

NO
