@GRAPHTYPE (Graph Type)

This macro selects a different graph type and assigns it to the chart that is shown in the report.

SYNTAX:

@GRAPHTYPE n

PARAMETERS:

n; 0...90 selects one of the following graph types

Value

Graph Type

0

Vertical Area Absolute

1

Vertical Area Stacked

2

Vertical Area Bi-Polar Absolute

3

Vertical Area Bi-Polar Stacked

4

Vertical Area Dual-Y Absolute

5

Vertical Area Dual-Y Stacked

6

Vertical Area Percent

7

Horizontal Area Absolute

8

Horizontal Area Stacked

9

Horizontal Area Bi-Polar Absolute

10

Horizontal Area Bi-Polar Stacked

11

Horizontal Area Dual-Y Absolute

12

Horizontal Area Dual-Y Stacked

13

Horizontal Area Percent

14

Vertical Bar Side-by-Side

15

Vertical Bar Stacked

16

Vertical Bar Dual-Y Side-by-Side

17

Vertical Bar Dual-Y Stacked

18

Vertical Bar Bi-Polar Side-by-Side

19

Vertical Bar Bi-Polar Stacked

20

Vertical Bar Percent

21

Horizontal Bar Side-by-Side

22

Horizontal Bar Stacked

23

Horizontal Bar Dual-Y Side-by-Side

24

Horizontal Bar Dual-Y Stacked

25

Horizontal Bar Bi-Polar Side-by-Side

26

Horizontal Bar Bi-Polar Stacked

27

Horizontal Bar Percent

28

Vertical Line Absolute

29

Vertical Line Stacked

30

Vertical Line Bi-Polar Absolute

31

Vertical Line Bi-Polar Stacked

32

Vertical Line Dual-Y Absolute

33

Vertical Line Dual-Y Stacked

34

Vertical Line Percent

35

Horizontal Line Absolute

36

Horizontal Line Stacked

37

Horizontal Line Bi-Polar Absolute

38

Horizontal Line Bi-Polar Stacked

39

Horizontal Line Dual-Y Absolute

40

Horizontal Line Dual-Y Stacked

41

Horizontal Line Percent

42

Pie

43

Ring Pie

44

Multiple Pie

45

Multiple Ring Pies

46

Multiple Proportional Pies

47

Multiple Proportional Ring Pies

48

Pie Bar

49

Ring Pie Bar

50

X/Y Scatter

51

X/Y Scatter Dual-Y

52

X/Y Scatter with Labels

53

X/Y Scatter Dual-Y with Labels

54

Polar

55

Polar Dual-Y

56

Radar

57

Radar Stacked

58

Radar Dual-Y

59

Radar Stacked Dual-Y

60

Bubble

61

Bubble Dual-Y

62

Gantt

63

High-Low Stock Chart

64

High-Low Dual-Y Stock Chart

65

High-Low-Open Stock Chart

66

High-Low-Open Dual-Y Stock Chart

67

High-Low-Open-Close Stock Chart

68

High-Low-Open-Close Dual-Y Stock Chart

69

Spectral Map

70

Vertical Histogram

71

Horizontal Histogram

72

Table

73

3D Riser Bars

74

3D Riser Pyramids

75

3D Riser Octagons

76

3D Riser Cut-Corner Bars

77

3D Floating Cubes

78

3D Floating Spheres

79

3D Connect Group Areas

80

3D Connect Group Ribbons

81

3D Connect Group Steps

82

3D Connect Series Areas

83

3D Connect Series Ribbons

84

3D Connect Series Steps

85

3D Surface

86

3D Surface with Sides

87

3D Honeycomb Surface

88

3D X/Y/Z Scatter Chart

89

3D X/Y/Z Scatter Chart with Labels

90

Box Plot

EXAMPLE:

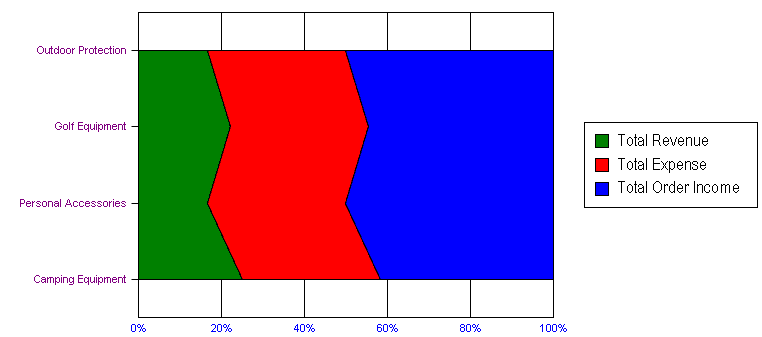

@GRAPHTYPE 13

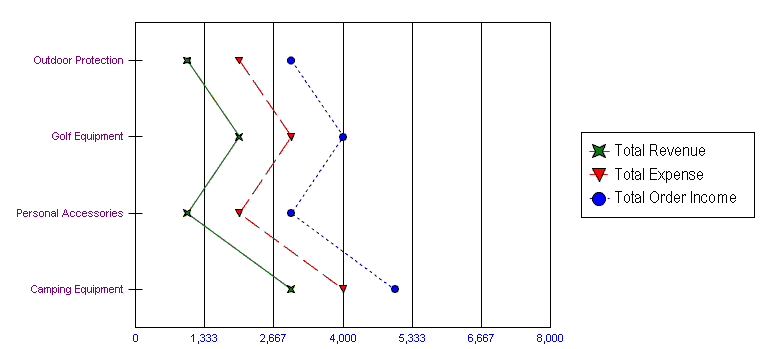

@GRAPHTYPE 35

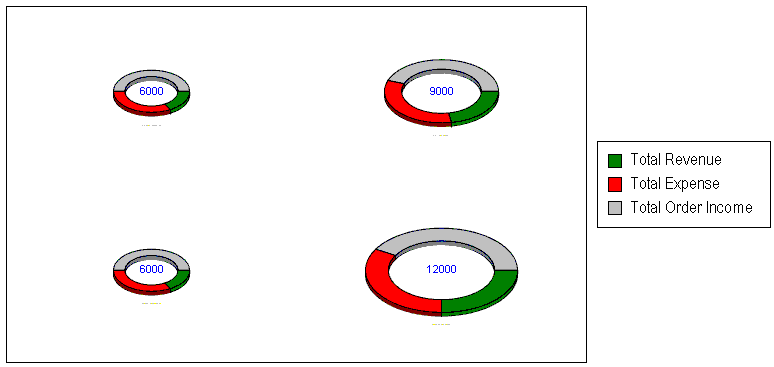

@GRAPHTYPE 47

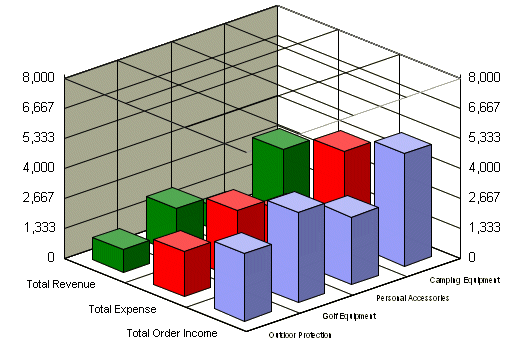

@GRAPHTYPE 73

PERSISTENT:

YES
