@HOUR_SCALE (Minor Axis Hour Scale)

When Y-Axis minor gridlines are enabled, this macro draws a minor axis hour scale on a time axis in a Gantt chart.

SYNTAX:

@HOUR_SCALE bActivateHours nInterval szHourFormat

PARAMETERS:

bActivateHours; 0=do not show hours, 1=show hours

nInterval; 1...24 interval to show hours. For example, a value of 6 shows a label at every sixth hour: 6AM, Noon, 6PM, etc.

szHourFormat; Label format string. Use standard Windows syntax: h=12-hour AM/PM time, H=24-hour time, h:mm=hours:minutes (e.g., 3:00), etc.

EXAMPLE:

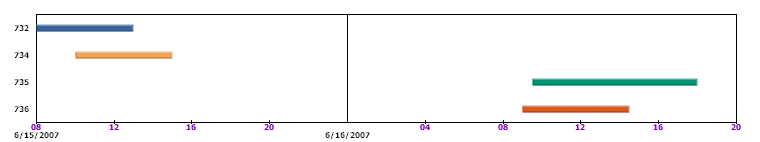

@HOUR_SCALE 1 4 HH~

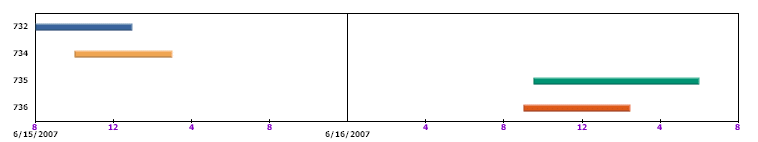

@HOUR_SCALE 1 4 h~

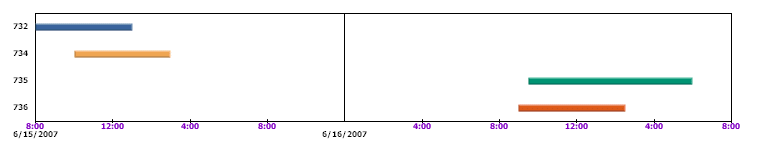

@HOUR_SCALE 1 4 h:mm~

PERSISTENT:

NO

NOTES:

Y-Axis minor gridlines must be enabled
