@RIVER (Floating Area Series)

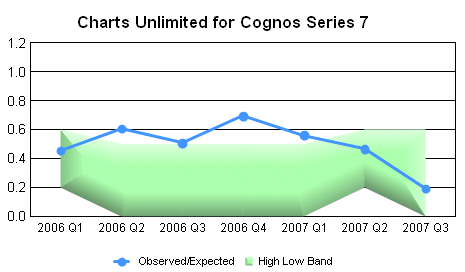

In a three-series graph (normally line chart), this macro changes the first two series into a floating area (i.e., river) behind the third series. Set bRiverMode=1 to activate. Set the bShowLegend parameter to one to add the river area as an entry in the legend with its own szRiverLabel string.


@RIVER bRiverMode bShowLegend szRiverLabel


bRiverMode; 1=enable river mode, 0=disable river mode

bShowLegend; 1=add river area as an entry in the legend, 0=don't show river area in legend

szRiverLabel; label string to use in legend if bShowLegend=1


@RIVER 1 1 River Series
