@SC (Y-Axis Scale)

This macro sets the minimum and maximum values that can appear on the Y-axis.

SYNTAX:

@SC fMin fMax

PARAMETERS:

fMin; Minimum value to show on the Y-Axis

fMax; Maximum value to show on the Y-Axis

EXAMPLE:

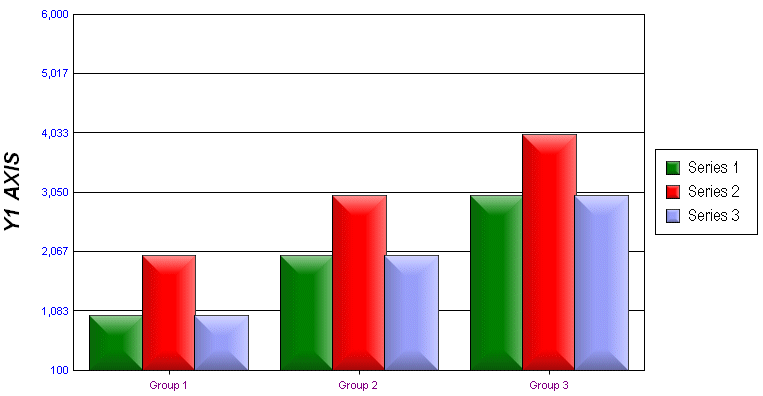

@SC 100 6000

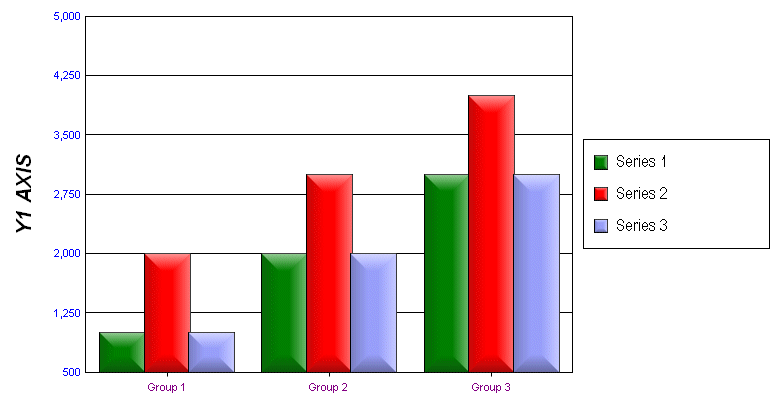

@SC 500 5000

PERSISTENT:

YES

NOTES:

If fMin and fMax parameters are BOTH set to 0.0, the Y-Axis scale mode is reset to automatic (i.e., the charting library automatically calculates the Y-Axis scale based on the values in the data set).

ALSO SEE::

• @SCX (X-Axis Scale)

• @SCY2 (Y2-Axis Scale)
