@USER_FILL_CIRCLE2_ABOVE (User-Defined Pattern-Filled Circle Above Chart Area)

On 2D charts, this macro fills a portion of the chart frame with a circle that is filled with a specified color, pattern, and optional phrase. The circle is drawn above the plot area. Set fStartX and fStopX to zero to select the lower left corner of the chart frame.

SYNTAX:

@USER_FILL_CIRCLE2_ABOVE fStartX fStopX fStartY fStopY nRed nGreen nBlue nPattern szPhrase

PARAMETERS:

fStartX; 0.0...1.1 X-Axis start location

fStopX; 0.0...1.1 X-Axis stop location

fStartY; 0.0...1.1 Y-Axis start location

fStopY; 0.0...1.1 Y-Axis stop location

nRed; 0...255 defines the RED portion of the RGB color

nGreen; 0...255 defines the GREEN portion of the RGB color

nBlue; 0...255 defines the BLUE portion of the RGB color

nPattern; -6...6. Positive value show one of the following patterns with a white background. Negative values show one of the following patterns with a transparent background.



szPhrase; Optional phrase. Add a tilde character (~) to this string if you intend to define another macro in the same title field.

EXAMPLE:

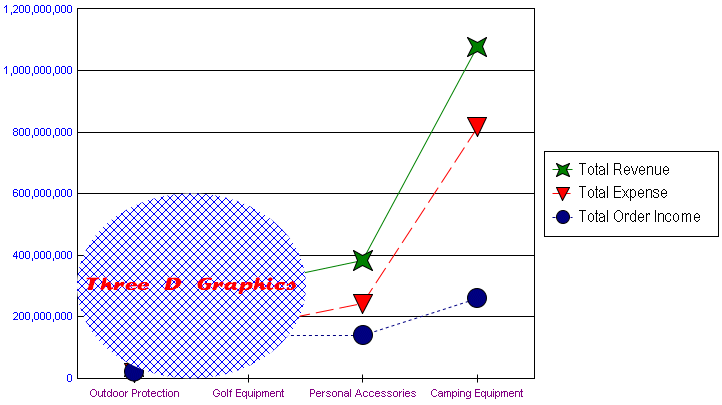

@USER_LABEL_FONT 14 255 0 0 255 Splash @USER_FILL_CIRCLE2_ABOVE 0.0 0.5 0.0 0.5 0 0 255 6 Three D Graphics

PERSISTENT:

NO

NOTES:

• Use the @USER_LABEL_FONT macro to define the size, color, and font of szPhrase.

• Charts Unlimited supports a maximum of 20 user-defined areas that are created with the following macros: @UF, @USER_CIRCLE, @USER_CIRCLE_ABOVE, @USER_FILL, @USER_FILL2, @USER_FILL_CIRCLE, @USER_FILL_CIRCLE_ABOVE, @USER_FILL_CIRCLE2, @USER_FILL_CIRCLE2_ABOVE, @USER_RECT, and @UW.

• @UF, @USER_CIRCLE..., @USER_FILL..., and @USER_RECT macros are independent of the X or Y axis values/scales.
