@Y2SLAVE2 (Y1/Y2 Slave to Max Value)

On a dual-Y axis chart, this macro forces the minimum/maximum values to be the same on both axes (Y1 and Y2). The charting library determines the maximum value to use on both axes by calculating MAX (Y1's Maximum Value, Y2's Maximum Value) from the raw data that forms the chart.

SYNTAX:

@Y2SLAVE2

PARAMETERS:

NONE

EXAMPLE:

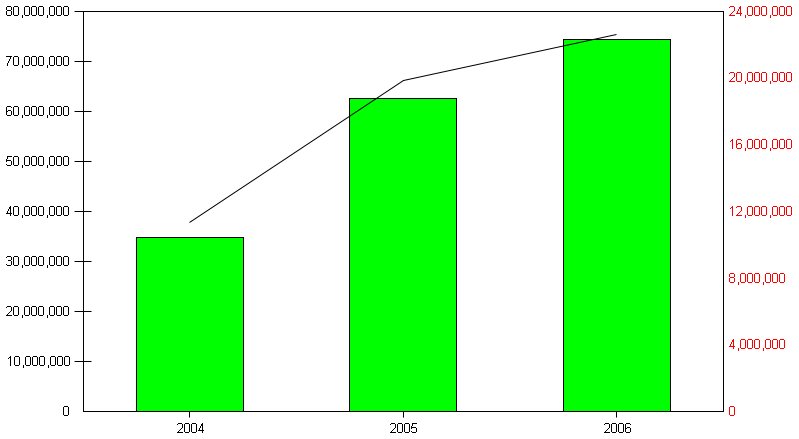

CHART BEFORE @Y2SLAVE2

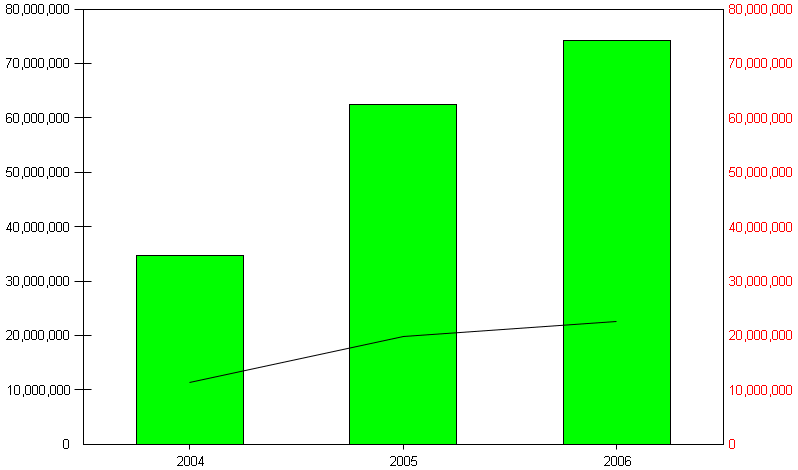

@Y2SLAVE2

In this example, Y1-Axis values are drawn on the left side of the chart. Y2-Axis values are drawn on the right side of the chart.

PERSISTENT:

YES

ALSO SEE::

@Y2SLAVE
