@ACTUAL_MONTH (Actual Month Band)

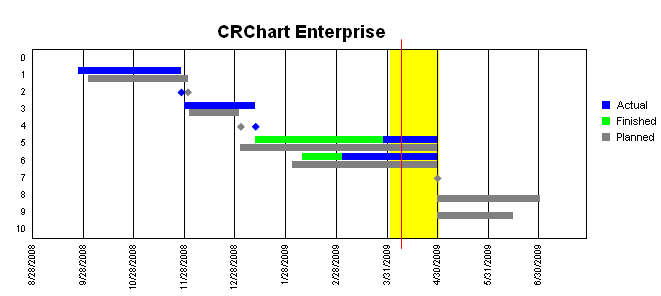

When the enhanced Gantt chart drawing engine is enabled with the @GANTT2 macro, this macro can be used to define a color band to draw across the current month.

SYNTAX:

@ACTUAL_MONTH MonthRGB

PARAMETERS:

MonthRGB; 0x000000...0xFFFFFF Defines the color of the actual month riser. Example: 0xFF0000 (Red)

EXAMPLE:

@GANTT2 1 0 1 @GANTT_COLORS 0x808080 0x0000FF 0x00FF00 @ACTUAL_DAY 0xFF0000 @ACTUAL_MONTH 0xE0EEE0

@ACTUAL_MONTH 0xFFFF00

PERSISTENT:

NO

REQUIREMENTS:

• Crystal Reports 11.5 or higher

•

ALSO SEE:

@ACTUAL_DAY, @GANTT2, @GANTT_COLORS
