@ZEROLINE (Draw Zero Line with Axis Labels)

This macro draws a line of a specified color on the X and/or Y axes. Axis labels are drawn below the zero line (instead of on the chart base line).

SYNTAX:

@ZEROLINE bXZeroLineMode bYZeroLineMode rgbZeroLine

PARAMETERS:

bXZeroLineMode; 1 = Draw zero line on X-Axis/0 = Do not draw zero line on X-Axis

bYZeroLineMode; 1 = Draw zero line on Y-Axis/0 = Do not draw zero line on Y-Axis

rgbZeroLine; 0x000000...0xFFFFFF Defines the color of the line. Example: 0xFF0000 (Red)

EXAMPLE:

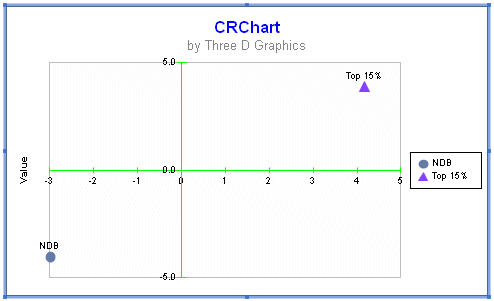

@ZEROLINE 1 1 0x00FF00

PERSISTENT:

NO

REQUIREMENTS:

Crystal Reports 11 or higher
