Reference Lines & Curves

get/setCurveFitPolynomialOrder()

If the setCurveFit() method selects a polynomial fit line across a series of risers (i.e., setCurveFit (FIT_POLYNOMIAL)), these methods get/set the order (the largest power to which "x" is raised) for the polynomial fit. The default value is 3. It may be set to a value in the range 0...10.

SYNTAX:

int getCurveFitPolynomialOrder();
int getCurveFitPolynomialOrder (IdentObj id);
int getCurveFitPolynomialOrder (int seriesID);
void setCurveFitPolynomialOrder (int newValue);
void setCurveFitPolynomialOrder (IdentObj id, int newValue);
void setCurveFitPolynomialOrder (int seriesID, int newValue);

INPUT:

id; object ID returned by a getObjectID() method (e.g., getSeries())

seriesID; Series Number

newValue; order for the polynomial fit (0...10)

RETURN:

int; Value assigned by setCurveFitPolynomialOrder()

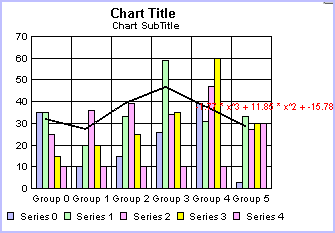

EXAMPLE:

setDepthRadius (0);
setCurveFitType (1, 3);
setCurveFitPolynomialOrder (1, 3);

NOTES:

If a specific object is not identified with the input parameters id or seriesID, these methods get/set the associated value (if any) for the first item in the selection list.

ALSO SEE:

get/setCurveFitType()

get/setCurveFitType()

These methods get/set a curve fit line. The selected curve type will draw across one or more series of risers in a chart.

SYNTAX:

int getCurveFitType();
int getCurveFitType (IdentObj id);
int getCurveFitType (int seriesID);
void setCurveFitType (int newValue);
void setCurveFitType (IdentObj id, int newValue);
void setCurveFitType (int seriesID, int newValue);

INPUT:

id; object ID returned by a getObjectID() method (e.g., getSeries())

seriesID; Series Number

newValue; Curve fit type (0...11). Use one of the following CurveFitType constants:

FIT_NONE = 0 // None
FIT_LINEAR = 1 // Linear regression curve fit line
FIT_QUADRATIC = 2 // Quadratic curve fit line
FIT_POLYNOMIAL = 3 // Polynomial fit line
FIT_HYPERBOLIC = 4 // Hyperbolic curve fit line
FIT_LOGARITHMIC = 5 // Logarithmic curve fit line
FIT_MODHYPERBOLIC = 6 // Modified hyperbolic
FIT_RATIONAL = 7 // Rational curve fit line
FIT_EXPONENTIAL = 8 // Exponential curve fit line
FIT_MODEXPONENTIAL = 9 // Modified exponential
FIT_LOGQUADRATIC = 10 // Logarithmic/Quadratic curve fit line
FIT_GEOMETRIC = 11 // Geometric curve fit line

RETURN:

int; The curve fit type (0...11) selected by setCurveFitType()

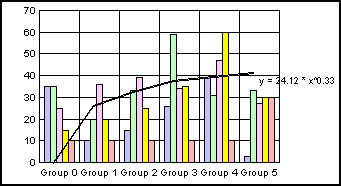

EXAMPLE:

setDepthRadius (0);
setCurveFitType (1, 11);

NOTES:

If a specific object is not identified with the input parameters id or seriesID, these methods get/set the associated value (if any) for the first item in the selection list.

ALSO SEE:

CurveFitEquationDisplay, CurveFitHighOrderFirst

getReferenceLineCount()

This method gets the number of reference lines that have been defined in a chart.

SYNTAX:

int getReferenceLineCount();

INPUT:

None

RETURN:

int; number of reference lines (0...2)

EXAMPLE:

setDepthRadius (0);
setGraphType (21);
setReferenceLine (getY1Axis(), 0, 50);
setLineWidth (getReferenceLine (getY1Axis(), 0), 3);
setFillColor (getReferenceLine (getY1Axis(), 0), new Color (255, 0, 0));
setReferenceLine (getY2Axis(), 1, getReferenceLineValue (getY1Axis(), 0));
setLineWidth (getReferenceLine (getY2Axis(), 1), getReferenceLineCount());
setFillColor (getReferenceLine (getY2Axis(), 1), new Color (255, 0, 0));

ALSO SEE:

getReferenceLineValue(), referenceLineInsert(), removeReferenceLineObject(), setReferenceLine()

getReferenceLineValue()

This method returns the location/value at which a specified reference line (nIndex) is drawn on a specified axis (axisObj).

SYNTAX:

double getReferenceLineValue (IdentObj axisObj, int nIndex)

INPUT:

axisObj; object ID returned by a getObject() method (e.g., getY1Axis().

nIndex; reference line index number (0...2)

RETURN:

double; the location/value of the reference line

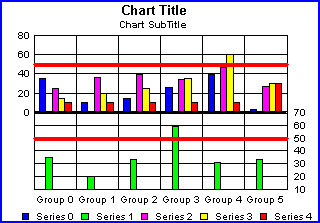

EXAMPLE:

setGraphType (21);
setDepthRadius (0);
setReferenceLine (getY1Axis(), 0, 50);
setLineWidth (getReferenceLine (getY1Axis(), 0), 3);
setFillColor (getReferenceLine (getY1Axis(), 0), new Color (255, 0, 0));
setReferenceLine (getY2Axis(), 1, getReferenceLineValue (getY1Axis(), 0));
setLineWidth (getReferenceLine (getY2Axis(), 1), 3);
setFillColor (getReferenceLine (getY2Axis(), 1), new Color (255, 0, 0));

ALSO SEE:

getReferenceLineCount(), referenceLineInsert(), removeReferenceLineObject(), setReferenceLine()

referenceLineInsert()

This method inserts a reference line into an ordered position.

SYNTAX:

int referenceLineInsert (IdentObj axisObj, int nIndex, double nPosition);

INPUT:

axisObj: object ID of an axis (e.g., getY1Axis())

nIndex: reference line index number (0...2)

nPosition: reference line position

RETURN:

int; inserted position

ALSO SEE:

getReferenceLineCount(), getReferernceLineValue(), removeReferenceLineObject(), setReferenceLine()

removeReferenceLineObject()

This method removes a reference line object.

SYNTAX:

void removeReferenceLineObject (IdentObj axisObj, int nIndex)

INPUT:

axisObj: object ID of an axis (e.g., getY1Axis())

nIndex: reference line index number

RETURN:

void;

ALSO SEE:

getReferenceLineValue(), referenceLineInsert(), getReferenceLineCount(), setReferenceLine()

setReferenceLine()

This method defines a reference line to be drawn in a chart.

SYNTAX:

void setReferenceLine (IdentObj axisObj, int nIndex, double nPosition)

INPUT:

axisObj; object ID of an axis object returned by a getObjectID() method (e.g., getY1Axis())

nIndex; reference line index number (0...2)

nPosition; reference line position

RETURN:

void;

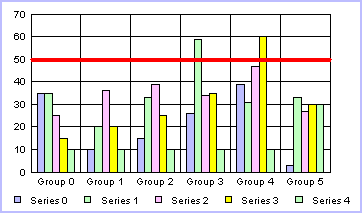

EXAMPLE:

setDepthAngle (0);
setDepthRadius (0);
setReferenceLine (getY1Axis(), 0, 50);
setLineWidth (getReferenceLine (getY1Axis(), 0), 3);
setFillColor (getReferenceLine (getY1Axis(), 0), new Color (255, 0, 0));

ALSO SEE:

getReferenceLineValue(), referenceLineInsert(), removeReferenceLineObject(), getReferenceLineCount()
