@BP/BP1 (Box Plot with Square Tail)

These macros change the chart type to a Box Plot with a square tail (standard). Each box in a Box Plot requires five values. Each set of five values form the "box" and define the location of the markers on top of each box.

SYNTAX:

@BP @BP1

PARAMETERS:

None

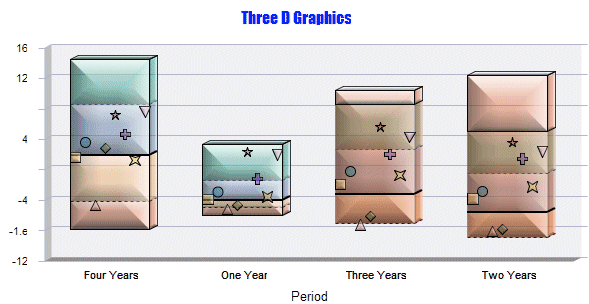

EXAMPLE: @BP.WID

@BP @SZ 35 @BEVEL 3 1 @ALPHA -1 100

ALSO SEE:

@BP2, @BP3, @BPW, @BPH

NOTES:

The default marker shape for markers on box plots are:

These default marker shapes can be changed using the "@MS" macro.
