@BPW (Box Plot Width)

When this macro is used in a box plot chart, the width of each box plot riser is determined by a sixth data value. The largest value gets 100% (normal) width. The width of all other risers (box plots) are a percentage of the largest value. Note that this macro is the same as @BP except that it causes the special draw with width being determined by a 6th variable.

SYNTAX:

@BPW

PARAMETERS:

None

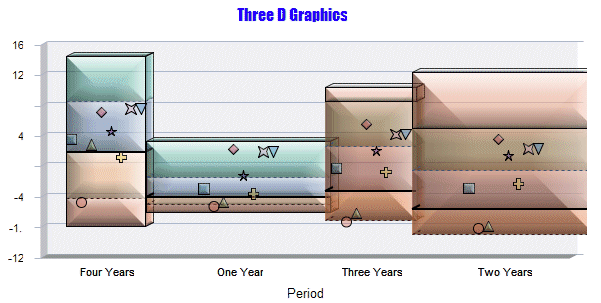

EXAMPLE: @BPW.WID

@BP @SZ 35 @HQ 1 @BEVEL 3 1 @ALPHA -1 100 @BPW

ALSO SEE:

@BP/@BP1, @BP2, @BP3
