@DEFINE_SCHEME (Define Color Scheme)

This macro can be used to define an 8-series color scheme that will be applied to risers/markers assigned to each series. The color scheme is repeated after the first 8 series.

SYNTAX:

@DEFINE_SCHEME Color1 Color2 Color3 Color4 Color5 Color6 Color7 Color8

PARAMETERS:

Color1...Color8; Defines the colors to assign to series 1...8, 9...16, etc.:

Data Type

Range

Example

Hex

0x000000...0xFFFFFF

0xFF0000 (Red)

HTML

#000000...#FFFFFF

#FF0000 = Red

Integer

3 integers 0...255 specifying the Red-Green-Blue components of the color

255 0 0 = Red

String

Color name string from http://www.w3schools.com/CSS/css_colornames.asp

Red

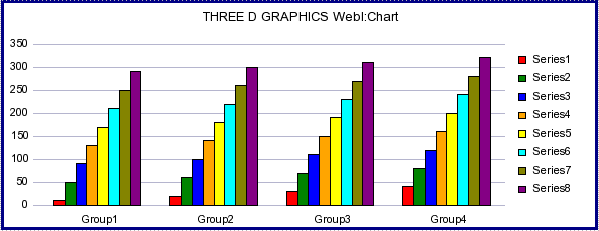

EXAMPLE: @DEFINE_SCHEME.WID

@GAP 25 @DEFINE_SCHEME Red Green Blue Orange Yellow Aqua Olive Purple

ALSO SEE:

@COLOR_SCHEME
