@DEPTH (Apply 2.5D Depth Effect)

This macro can be used to apply a 2.5D depth effect to a chart. It is the same as the 3D Look property in the Display section of the Properties panel except this macro lets you specify the amount of depth to apply.

SYNTAX:

@DEPTH nDepth

PARAMETERS:

nDepth; 0...2000 defines the amount of depth to apply

EXAMPLE: @DEPTH.WID

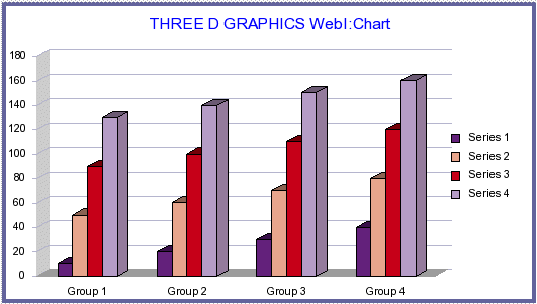

@COLOR_SCHEME 5 @DEPTH 100

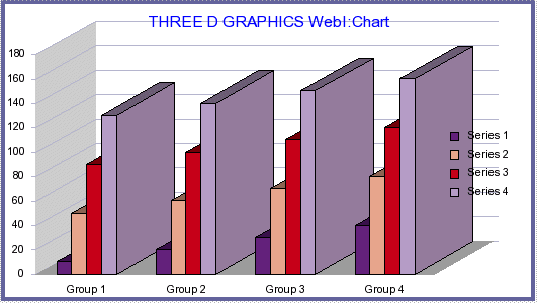

@DEPTH 500
