@FRAME (Frame Size/Location)

This macro can be used to specify a fixed size/location for the chart frame. If you want the chart frame to be the exact same size and in the same location on each page of a report, this macro will position the chart frame at the specified X/Y coordinates.

SYNTAX:

@FRAME nUpperLeftX nUpperLeftY nLowerRightX nLowerRightY

PARAMETERS:

nUpperLeftX, nUpperLeftY; -16382...+16382 specifies the X/Y position of the upper left corner of the chart frame in virtual coordinates

nLowerRightX, nLowerRightY; -16382...+16382 specifies the X/Y position of the lower right corner of the chart frame in virtual coordinates

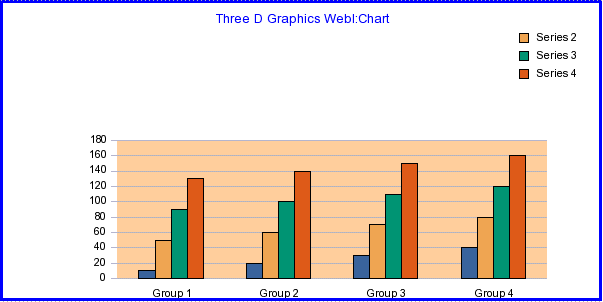

EXAMPLE: @FRAME.WID

@FRAME -10000 1110 13383 -14000 @LEGEND 16000 16000 16300 16300
