When a gauge chart is created with the @GAUGE macro, this macro enables/disables the high-quality gauge drawing engine. The @GAUGE macro creates a gauge for each row in a data set and a gauge needle for each column in a data set. @GAUGE_STYLE draws a single needle for the first value in a column and data markers to represent other values in a column. Use @GAUGE_MULTIPLE_NEEDLES to modify the default setting.
SYNTAX:
@GAUGE_STYLE bEnablePARAMETERS:
bEnable; 0=Use standard gauge drawing engine. 1=Use High-Quality Gauge Drawing Engine.
EXAMPLE: @GAUGE_STYLE.WID

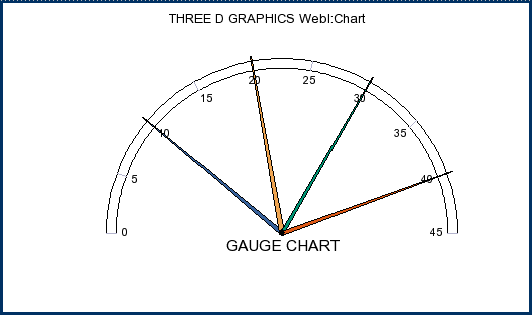

@GAUGE 1 @GAUGE_STYLE 0

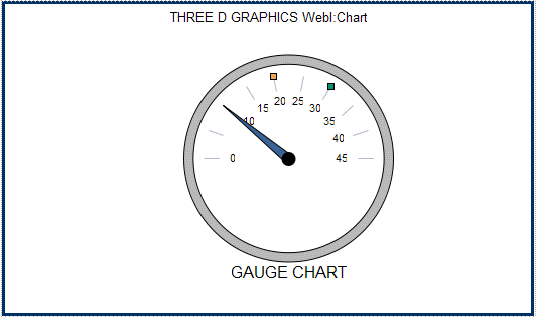

@GAUGE_STYLE 1
ALSO SEE:
- @GAUGE_BORDER_STYLE to change the style of the gauge border
- @GAUGE_BORDER_THICKNESS to change the width of the gauge border
- @GAUGE_MULTIPLE_NEEDLES to draw a single needle or multiple needles
- @GAUGE_NEEDLE_STYLE to change the gauge needle style
- @GAUGE_RANGE to define gauge band colors
- @GCOLOR can be used to change the color of the gauge face, gauge border, and needle base
