@MC (Marker Colors for Box Plots)

This macro defines the color of markers in a box plot.

SYNTAX:

@MC nSeries nRed nGreen nBlue

PARAMETERS:

nSeries; Series Number (1...8)

nRed; 0...255 defines the RED component of the color

nGreen; 0...255 defines the GREEN component of the color

nBlue; 0...255 defines the BLUE component of the color

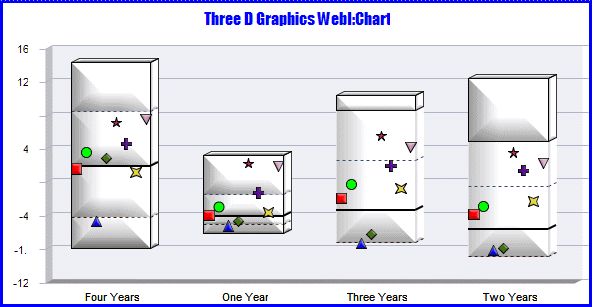

EXAMPLE: @MC.WID

@BP @SZ 35 @HQ 1 @BEVEL 3 1 @BW @MC 1 255 0 0 @MC 2 0 255 0 @MC 3 0 0 255

ALSO SEE:

@GCOLOR to change the color of other chart objects.

NOTES:

This macro is for box plot charts only, Use the @MCOLOR macro to change the color of markers and risers in other chart types.
