@IN (Move First Box Plot In)

In a Box Plot Chart, this macro will move the first box to the right by a specified number of virtual units.

SYNTAX:

@IN nUnits

PARAMETERS:

nUnits; Number of virtual units (0...16000) to move the first box to the right.

EXAMPLE: @IN.WID

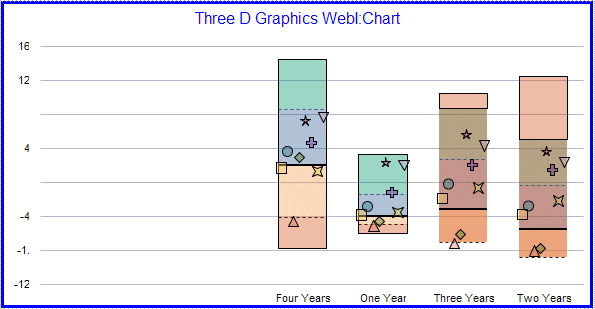

@BP @SZ 35 @ALPHA -1 100 @IN 12000

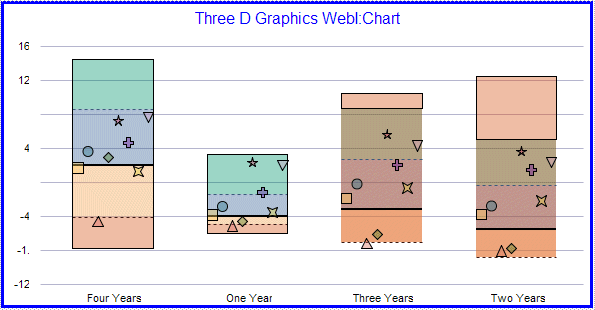

@IN 0

NOTES:

• This macro is not compatible with 2.5D charts where depth has been applied to the chart with the 3D Look option in the Display section of the Properties panel or the @DEPTH macro.

ALSO SEE:

@BP, @BP1, @BP2, @BP3
