@ZEROLINE (Draw Zero Line)

This macro draws a zero line on the X- and/or Y-Axis using the specified color. Axis labels are drawn below the zero line (instead of on the chart base line).

SYNTAX:

@ZEROLINE bXZeroLineMode bYZeroLineMode Color

PARAMETERS:

bXZeroLineMode; 1 = Draw zero line on X-Axis/0 = Do not draw zero line on X-Axis

bYZeroLineMode; 1 = Draw zero line on Y-Axis/0 = Do not draw zero line on Y-Axis

Color; Define the color of the line using one of the following:

Data Type	Range	Example
Hex	0x000000...0xFFFFFF	0xFF0000 (Red)
HTML	#000000...#FFFFFF	#FF0000 = Red
Integer	three integers 0...255 specifying the red, green, & blue components of the color	255 0 0 = Red
String	a color name string from http://www.w3schools.com/CSS/css_colornames.asp	Red

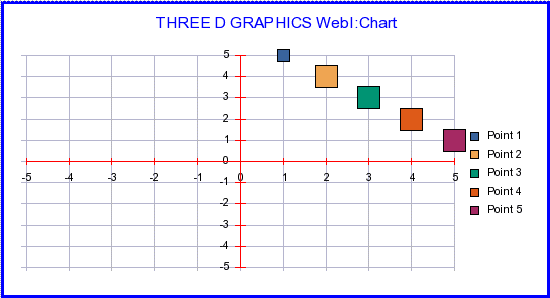

EXAMPLE:

@SC -5 5 @SCX -5 5 @ZEROLINE 1 1 Red
