@MS (Marker Shapes for Box Plots)

For Box Plots only, this macro specifies the shape of markers for a particular series in a chart.

SYNTAX:

@MS nSeries nShape

PARAMETERS:

nSeries; Series Number (1...8).

nShape; 1...8 selects the shape to assign to series nSeries:

EXAMPLE:

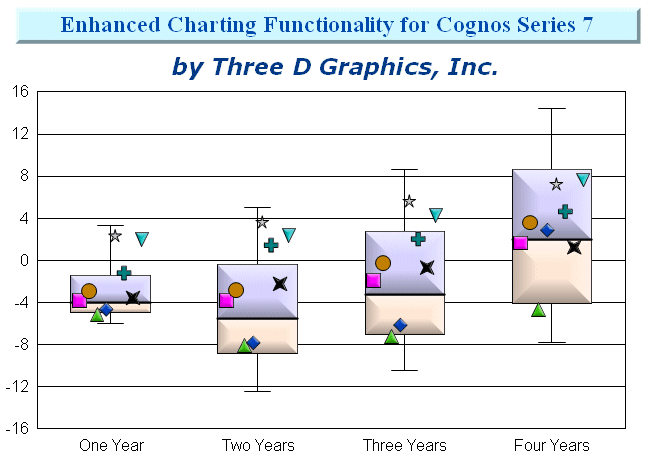

@BP2 @SZ 24 @MS 1 8 @MS 2 7 @MS 3 6 @MS 4 5 @MS 5 4 @MS 6 3 @MS 7 2 @MS 8 1

PERSISTENT:

NO

NOTES:

This macro is for box plot charts only. Use the @MARKER macro to select marker shapes in other chart types.

ALSO SEE:

@SZ to set the size of markers in box plots
