@MARKER (Marker Shapes)

This macro sets the shape of markers for a specified series in a chart. It can be used in any chart that uses markers (Bubble, Scatter, Line Graph with Markers, etc.) except Box Plots. See the @MS macro to set the shape of markers in box plots.


@MARKER nSeries nMarker


nSeries; -1...n (where: n = the total number of series in the chart). -1 = apply to all series, 0 = Series 1, 1 = Series 2, etc.

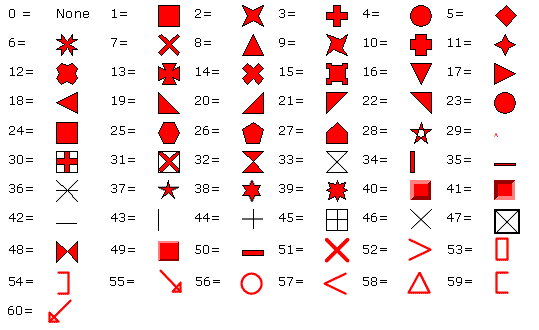

nMarker; 0...60 selects one of the following markers to apply to nSeries.


@SZ 50
@MARKER 0 40
@MARKER 1 13
@MARKER 2 31
