@PAT (Patterns on Risers)

This macro can be used to apply a pattern to risers.

SYNTAX:

@PAT nSeries nPattern

PARAMETERS:

nSeries; -1...n (where: n = the total number of series in the chart). -1 = apply to all series, 0 = Series 1, 1 = Series 2, etc.

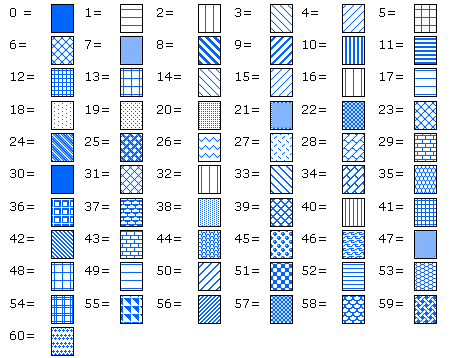

nPattern; 0...60 selects one of the following patterns with a white background. You can use -1 to -6 to select one of these patterns with a transparent background.

EXAMPLE:

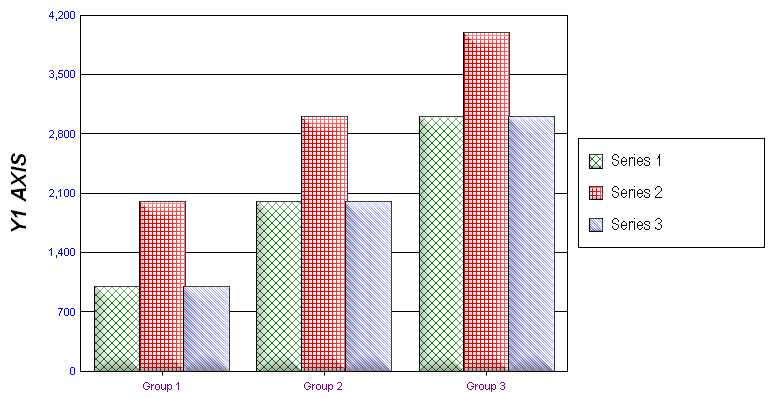

@PAT 0 6 @PAT 1 12 @PAT 2 24

PERSISTENT:

YES
