@MCOLOR (Marker Colors)

This macro can be used to change the color of markers and risers in all chart types except box plots. Use the @MC macro if you want to change the color of markers in box plots.

SYNTAX:

@MCOLOR nSeries nRed nGreen nBlue

PARAMETERS:

nSeries; -1...n (where: n = the total number of series in the chart). -1=apply to all series, 0=Series 1, 1=Series 2, etc.

nRed; 0...255 defines the Red portion of RGB color selection.

nGreen; 0...255 defines the Green portion of RGB color selection.

nBlue; 0...255 defines the Blue portion of RGB color selection.

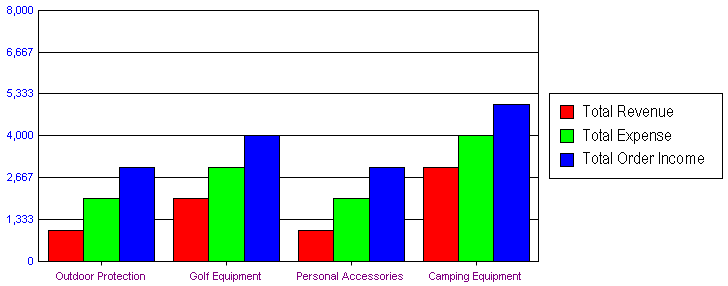

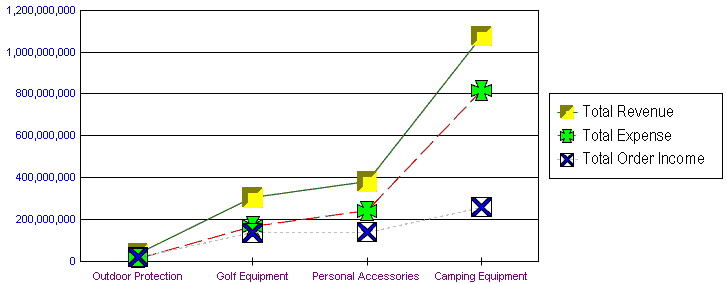

EXAMPLE:

@MCOLOR 0 255 255 0 @MCOLOR 1 0 255 0 @MCOLOR 2 0 0 255

@MCOLOR 0 255 0 0 @MCOLOR 1 0 255 0 @MCOLOR 2 0 0 255

PERSISTENT:

YES

ALSO SEE:

@GCOLOR to change the color of other chart objects.
