@STEP_LINE (Series Stepped Line)

In a line chart, this macro can be used to change any or all series in the chart to draw as a stepped line.

SYNTAX:

@STEP_LINE nSeries bStep

PARAMETERS:

nSeries; -1...n (where: n = the total number of series in the chart). -1 = apply to all series, 0 = Series 1, 1 = Series 2, etc.

bStep; 1 = draw nSeries as stepped line. 0 = draw nSeries normally.

EXAMPLE:

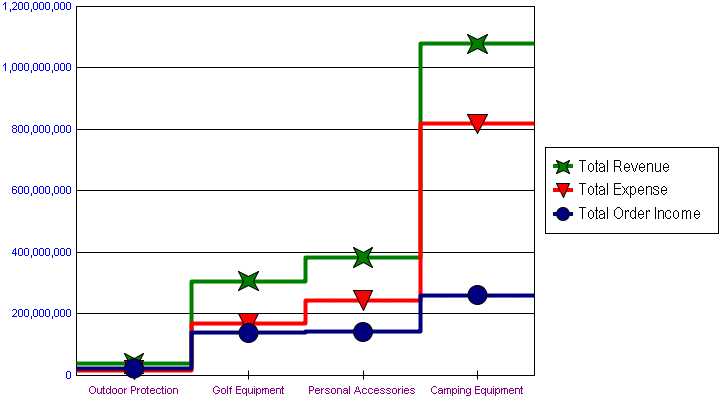

@SZ 50 @LS 1 300 0 @STEP_LINE -1 1

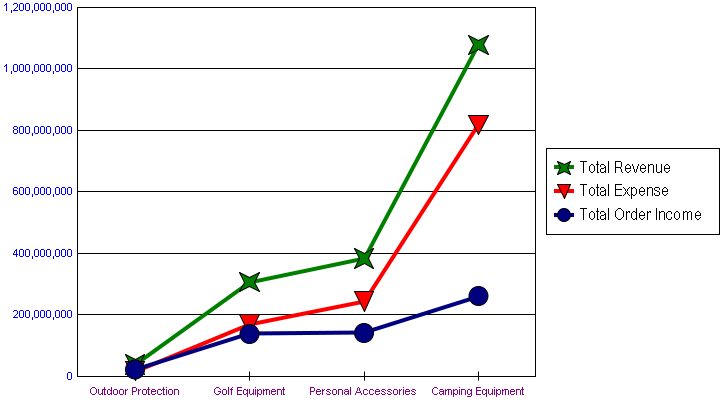

@SZ 50 @LS -1 300 0 @STEP_LINE -1 0

PERSISTENT:

YES

ALSO SEE:

@STEP_LINE2
