@USER_CIRCLE (User-Defined Outlined Circle)

This macro fills a section of the chart frame with an outlined circle. The chart must be a flat 2D chart without depth or 3D Look applied. The nRed, nGreen, nBlue, nStyle, and nWidth parameters define the color, style, and width of the outline. Set fStartX/fStopX to zero to select the lower left corner of the chart frame.

SYNTAX:

@USER_CIRCLE fStartX fStopX fStartY fStopY nRed nGreen nBlue nStyle nWidth szPhrase

PARAMETERS:

fStartX; 0.0...1.1 X-Axis start location

fStopX; 0.0...1.1 X-Axis stop location

fStartY; 0.0...1.1 Y-Axis start location

fStopY; 0.0...1.1 Y-Axis stop location

nRed; 0...255 defines the RED component of the color

nGreen; 0...255 defines the GREEN component of the color

nBlue; 0...255 defines the BLUE component of the color

nStyle; 0...15 defines the outline style:



nWidth; 0...1000 defines the width of the outline.

szPhrase; Optional phrase. Add a tilde character (~) to this string if you intend to define another macro in the same title field.

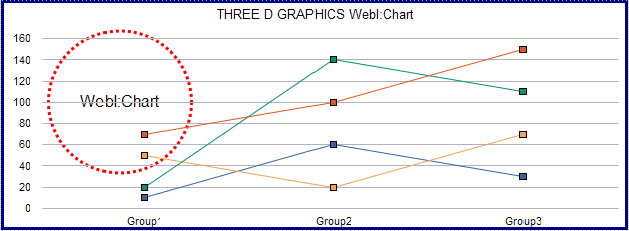

EXAMPLE: @USER_CIRCLE.WID

@HQ 1 @USER_CIRCLE 0.0 0.25 0.25 1.0 255 0 0 2 500 WebI:Chart

NOTES:

• WebI:Chart supports a maximum of 20 user-defined areas that are created with the following macros:
  @UF
  @USER_CIRCLE
  @USER_CIRCLE_ABOVE
  @USER_FILL
  @USER_FILL2
  @USER_FILL_CIRCLE
  @USER_FILL_CIRCLE_ABOVE
  @USER_FILL_CIRCLE2
  @USER_FILL_CIRCLE2_ABOVE
  @USER_RECT
  @UW

• @UF, @USER_CIRCLE..., @USER_FILL..., and @USER_RECT macros are independent of the X or Y axis values/scales.

• This macro is not compatible with 2.5D charts where depth has been applied to the chart with the 3D Look option in the Display section of the Properties panel or the @DEPTH macro.
