This macro fills a section of the chart frame with an outlined rectangle. The chart must be a flat 2D chart without depth or 3D Look applied. Set fStartX and fStopX to zero to select the lower left corner of the chart frame. The rectangle is outlined with the specified color (nRed, nGreen, nBlue). The nWidth and nStyle parameters define the thickness and style of the outline of the rectangle.
SYNTAX:
@USER_RECT fStartX fStopX fStartY fStopY nRed nGreen nBlue nStyle nWidth szPhrasePARAMETERS:
fStartX; 0.0...1.1 X-Axis start location
fStopX; 0.0...1.1 X-Axis stop location
fStartY; 0.0...1.1 Y-Axis start location
fStopY; 0.0...1.1 X-Axis stop location
nRed; 0...255 defines the RED component of the color
nGreen; 0...255 defines the GREEN component of the color
nBlue; 0...255 defines the BLUE component of the color

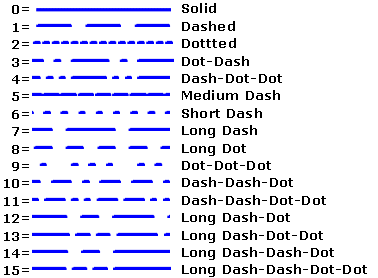

nStyle; 0...15 selects the line style
nWidth; 0...1000 Line Thickness
szPhrase; Optional phrase. Add a tilde character (~) to this string if you intend to define another macro in the same title field.EXAMPLE: @USER_RECT.WID
@HQ 1

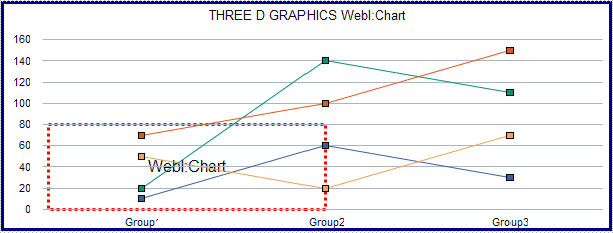

@USER_RECT 0.0 0.5 0.0 0.5 255 0 0 2 500 WebI:Chart
NOTES:
- WebI:Chart supports a maximum of 20 user-defined areas that are created with the following macros:
@UF
@USER_CIRCLE
@USER_CIRCLE_ABOVE
@USER_FILL
@USER_FILL2
@USER_FILL_CIRCLE
@USER_FILL_CIRCLE_ABOVE
@USER_FILL_CIRCLE2
@USER_FILL_CIRCLE2_ABOVE
@USER_RECT
@UW
- @UF, @USER_CIRCLE..., @USER_FILL..., and @USER_RECT macros are independent of the X or Y axis values/scales.
- This macro is not compatible with 2.5D charts where depth has been applied to the chart with the 3D Look option in the Display section of the Properties panel or the @DEPTH macro.
