This macro draws a band on the chart background from fStartX to fStopX using the color defined by @WC. The default color is white. The chart must be a flat 2D chart without depth or 3D Look applied.
SYNTAX:
@UW fStartX fStopX szPhrasePARAMETERS:
fStartX; 0.0...1.0 X-Axis start location
fStopX; 0.0...1.0 X-Axis stop location
szPhrase; Optional phrase. Add a tilde character (~) to this string if you intend to define another macro in the same title field.

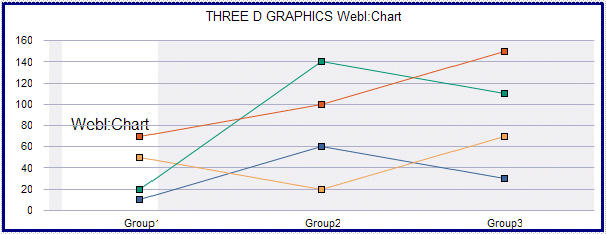

EXAMPLE: @UW.WID
@UW .025 .2 WebI:Chart
NOTES:
- WebI:Chart supports a maximum of 20 user-defined areas that are created with the following macros:
@UF
@USER_CIRCLE
@USER_CIRCLE_ABOVE
@USER_FILL
@USER_FILL2
@USER_FILL_CIRCLE
@USER_FILL_CIRCLE_ABOVE
@USER_FILL_CIRCLE2
@USER_FILL_CIRCLE2_ABOVE
@USER_RECT
@UW
- @UF, @USER_CIRCLE..., @USER_FILL..., and @USER_RECT macros are independent of the X or Y axis values/scales.
- This macro is not compatible with 2.5D charts where depth has been applied to the chart with the 3D Look option in the Display section of the Properties panel or the @DEPTH macro.
