@YSZN2 (Y1-Axis Line with Label & Value Above Line)

This macro adds a user-defined line on the Y1-axis at value fValue with the label sZLabel. The value of fValue is appended to sZLabel. For vertical orientation, the line is drawn horizontally. For horizontal orientation, the line is drawn vertically. The label and value are drawn above the line.

SYNTAX:

@YSZN2 fValue nXAdjust nYAdjust sZLabel

PARAMETERS:

fValue; Value at which to add the user-defined line on the Y1-axis

nXAdjust; -16000...16000 adjusts the label closer to or further away from the line.

nYAdust; -16000...16000 adjusts the label closer to or further away from the line.

sZLabel; Label string to show next to the line at fValue. Add a space to the end of the label if you want a space to appear between the label and fValue. Add a tilde (~) character to the end of the string if you intend to define other macros in the same title field.

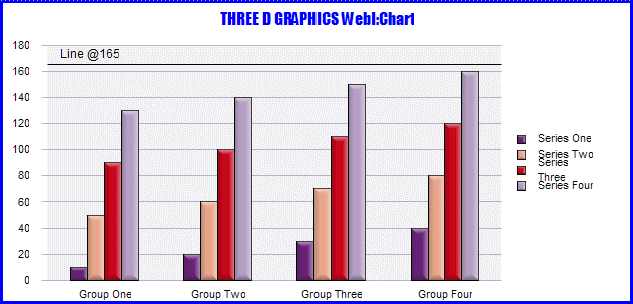

EXAMPLE:

@YSZN2 165 0 -1500 Line @

NOTES:

WebI:Chart supports a maximum of 20 user-defined lines. User-defined lines are drawn with: @CX, @CXY, @CY, @CY2, @X, @XG, @XSZ, @XSZL, @XSZN, @XSZNL, @XY, @XY_DP2, @Y, @YSZ, @YSZL, @YSZN, @YSZN2, & @YSZNL.

ALSO SEE:

@YSZ, @YSZL, @YSZNL
