@MS (Marker Shapes for Box Plots)

For Box Plots only, this macro sets the shape of markers for a particular series in a chart.

SYNTAX:

@MS nSeries nMarker

PARAMETERS:

nSeries; 1...8 Series Number.

nMarker; 1...8 selects the marker to assign to series nSeries:

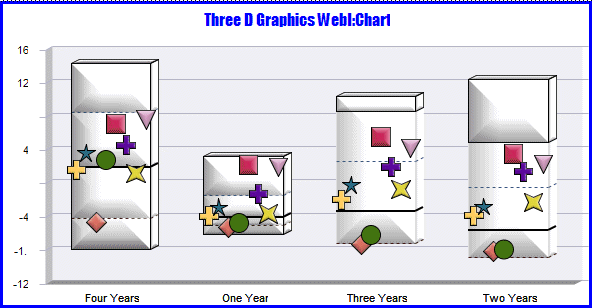

EXAMPLE: @MS.WID

@BP @SZ 80 @HQ 1 @BEVEL 3 1 @BW @MS 1 6 @MS 2 5 @MS 3 4 @MS 4 3 @MS 5 1

NOTES:

This macro is for box plot charts only. Use the @MARKER macro to select marker shapes in other chart types.

ALSO SEE:

@SZ to set the size of markers in box plots

@MC to change the color of markers in box plots
