@DATATEXT (Data Text Mode)

This macro sets the data text mode (i.e., values on risers, labels on risers, etc.).

SYNTAX:

@DATATEXT n

PARAMETERS:

n; Selects the data text to show. It can be one of the following:

Value

Description

0

None, do not show values or non-numeric text

1

Value(s) of data item(s)

2

Unique data item text

3

Values and non-numeric text

4

Absolute value in stacked segments.

5

Unique data item text and show absolute value in stacked segments

7

Values and non-numeric text and show absolute value in stacked segments

8

Total value on top of the stacked bar.

16

Z-value in bubble charts.

32

Calculate and show the riser value as a percentage

64

Y-value in scatter or bubble charts

EXAMPLE:

@DATATEXT 1
@FONTSIZE 7 8

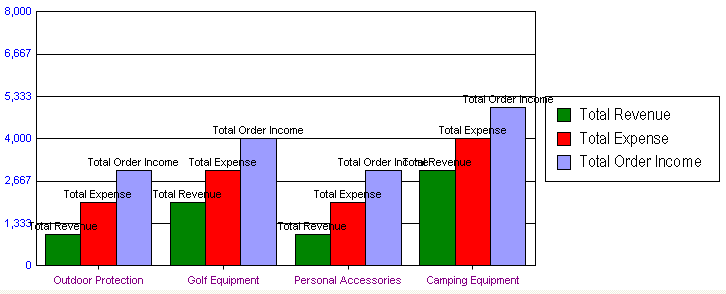

@DATATEXT 2

@DATATEXT 3

@GRAPHTYPE 15
@DATATEXT 5

@GRAPHTYPE 15

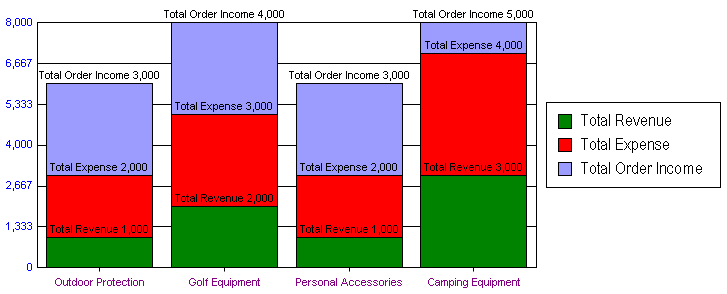

@DATATEXT 7

@GRAPHTYPE 50
@DATATEXT 64

PERSISTENT:

YES
